Product Information

Description

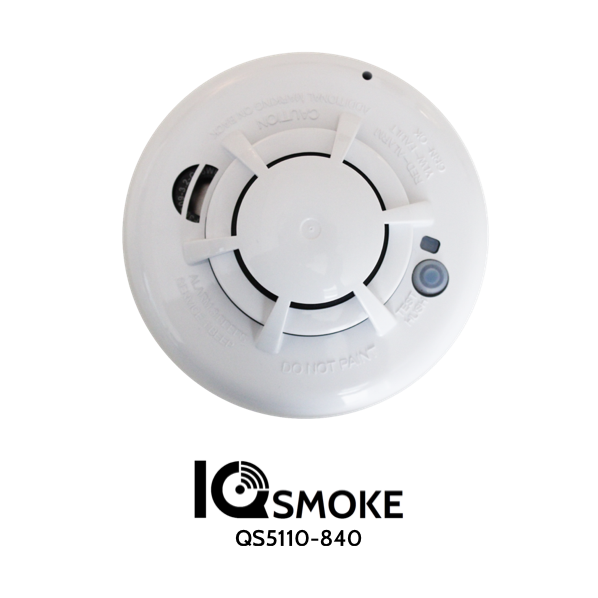

QS5110-840

The IQ Smoke is connected to your IQ Panel and monitored 24-7, whether your system is armed or not. The IQ Smoke detects the presence of smoke using photoelectric smoke-sensing technology and conforms to UL 217. The IQ Smoke detects the presence of smoke particles as well as the rapid rise in heat that can come from a fire, even if there is no smoke. Because your system is always connected, you can receive a text or email alert if there are any problems, wherever you are.

FEATURES

- “Always on” technology ensures the sensor is monitored around the clock, whether your system is armed or not
- Ultra sensitive smoke sensor prevents false alarms while constantly monitoring
- Heat sensor detects the rapid rise in heat that comes from a fire - even when there is no smoke (like an electrical fire)
- Wall or ceiling mounted
- 3-5 year battery life

SPECIFICATIONS

- Power Source: 3 AAA PC2400 Duracell Procell batteries (1.5V 1100mAh) or 3 AAA Energizer E92 batteries (1.5V 1100mAh) (included)
- Audible Signal (ANSI Temporal 3): 85dBA min. in alarm
- Sensitivity: 1.5 - 3.5%/foot
- Supplementary Heat Rating: 135°F
- Operating Temperature: 40°F - 100°F (4.4°C - 37.8°C)
- Relative Humidity: 15 - -90% Non-Condensing
- Dimensions: Diameter 5" x 2.5"D
- Regulatory Listing: UL 217

IQ Smoke Install Manual

Description

QS5110-840

The IQ Smoke is connected to your IQ Panel and monitored 24-7, whether your system is armed or not. The IQ Smoke detects the presence of smoke using photoelectric smoke-sensing technology and conforms to UL 217. The IQ Smoke detects the presence of smoke particles as well as the rapid rise in heat that can come from a fire, even if there is no smoke. Because your system is always connected, you can receive a text or email alert if there are any problems, wherever you are.

FEATURES

- “Always on” technology ensures the sensor is monitored around the clock, whether your system is armed or not
- Ultra sensitive smoke sensor prevents false alarms while constantly monitoring
- Heat sensor detects the rapid rise in heat that comes from a fire - even when there is no smoke (like an electrical fire)
- Wall or ceiling mounted
- 3-5 year battery life

SPECIFICATIONS

- Power Source: 3 AAA PC2400 Duracell Procell batteries (1.5V 1100mAh) or 3 AAA Energizer E92 batteries (1.5V 1100mAh) (included)
- Audible Signal (ANSI Temporal 3): 85dBA min. in alarm
- Sensitivity: 1.5 - 3.5%/foot
- Supplementary Heat Rating: 135°F
- Operating Temperature: 40°F - 100°F (4.4°C - 37.8°C)
- Relative Humidity: 15 - -90% Non-Condensing
- Dimensions: Diameter 5" x 2.5"D
- Regulatory Listing: UL 217

IQ Smoke Install Manual

Sales, Installation, Service, and Monitoring
In Business for Over 40 Years!
Security Products by Catawba Security - Online Store

Qolsys S-line IQ SMOKE

$80.00
$80.00
Shipping calculated at checkout.
For over 40 years Catawba Security has been providing the Shores and Islands region of Ohio with top notch service with a local ...  Read more
For over 40 years Catawba Security has been providing the Shores and Islands region of Ohio with top notch service with a local focus. Family owned and operated, we take pride in knowing that our community has put its faith in us to protect the things that matter most.
Alarm Monitoring Services
A leading provider of professional monitoring services in Ohio and North America. Our mission is ...  Read more
Includes Professional Installation
All our product pricing includes professional, knowledgeable, and friendly installation labor (within 25 mile radius of Port Clinton, Ohio 43452).

Family owned business for over 40 years!

One Year Warranty
On all parts and installation, included in price

We offer full range of Alarm Monitoring Services

Click to Get Your System Monitored Now
