Product Information

Description

QS1231-840

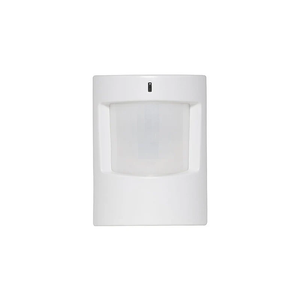

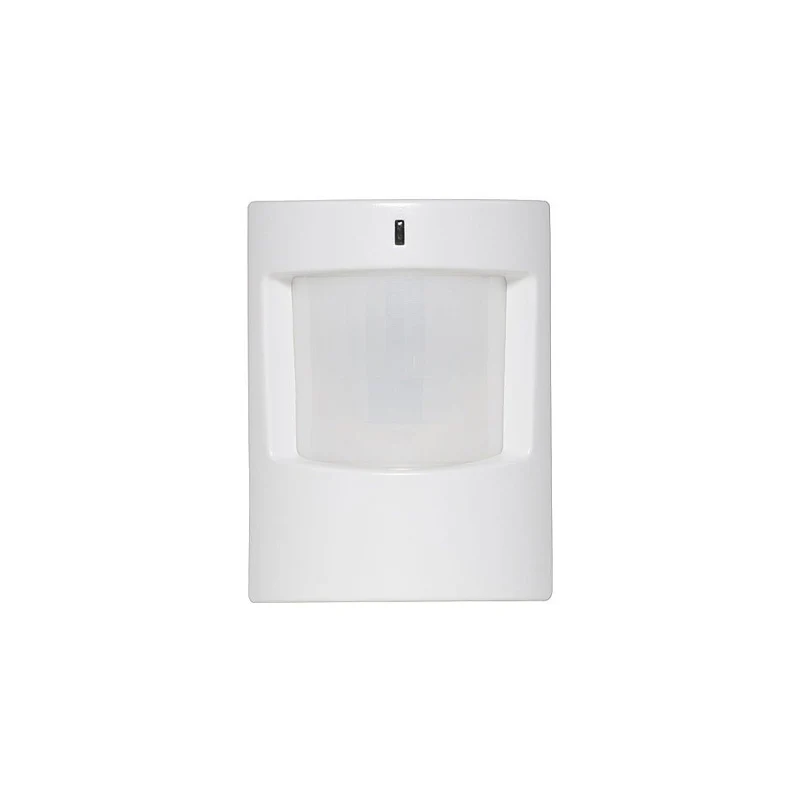

The IQ Motion-S is an encrypted PIR that is as powerful as it is affordable. Leveraging our proprietary S-Line Technology it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. Pet immune up to 40 pounds, the IQ Motion-S is designed to mount on a flat surface or in a corner.

FEATURES

- Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
- Provides security coverage up to 30’ in a large open area
- Use to create rules such as “When someone enters the room, turn on light” or “Trigger alarm when intruder detected”
- Pet immune up to 40 lbs

SPECIFICATIONS

- Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
- Transmitter frequency: 319.5MHZ +-15KHz
- Transmitter bandwidth: 24KHZ
- Modulation type: ASK-OOK
- RF output power 91.1dBuV +/- 5% at 3m
- Sensor Range 30 ft (9.1 m) x 40 ft (12.2 m)
- Maximum Horizontal Sensing Angle 80°
- Operating Temperature: -10˚C~50˚C
- Relative Humidity: 5-95%
- Non-Condensing Storage Temperature: -40˚C to 80˚C

Quick Guide English
Quick Guide Spanish
IQ Motion S-Line Installation Manual





Description

QS1231-840

The IQ Motion-S is an encrypted PIR that is as powerful as it is affordable. Leveraging our proprietary S-Line Technology it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. Pet immune up to 40 pounds, the IQ Motion-S is designed to mount on a flat surface or in a corner.

FEATURES

- Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
- Provides security coverage up to 30’ in a large open area
- Use to create rules such as “When someone enters the room, turn on light” or “Trigger alarm when intruder detected”
- Pet immune up to 40 lbs

SPECIFICATIONS

- Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
- Transmitter frequency: 319.5MHZ +-15KHz
- Transmitter bandwidth: 24KHZ
- Modulation type: ASK-OOK
- RF output power 91.1dBuV +/- 5% at 3m
- Sensor Range 30 ft (9.1 m) x 40 ft (12.2 m)
- Maximum Horizontal Sensing Angle 80°
- Operating Temperature: -10˚C~50˚C
- Relative Humidity: 5-95%
- Non-Condensing Storage Temperature: -40˚C to 80˚C

Quick Guide English
Quick Guide Spanish
IQ Motion S-Line Installation Manual
