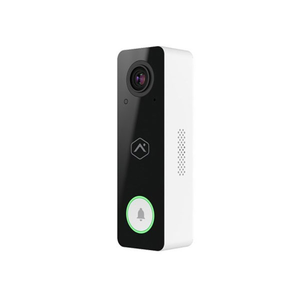

The Alarm.com ADC-VDB750 is a full HD quality wired video doorbell camera. It includes two-way audio, video analytics, improved temperature range, and a larger field-of-view. The ADC-VDB750 does not need a power module with most mechanical chimes, making for an easy install. It is wired to provide power to the doorbell, and connect it with an existing chime. The doorbell does need to connect wirelessly to the local WIFI network.

Spec Sheet

Specifications

Device Type: Video Doorbell Camera
Compatibility: Each ADC-VDB750 counts as one camera when used with a full video plan. A single doorbell option with Video Analytics is available for otherwise non-video customers.
Video Resolution: Full HD
Field of View (FoV): 145° Vertical, 165° Horizontal
Image Sensor: 1/2.4", 2.36 MP, HDR
High Dynamic Range (HDR): Yes
IR Night Vision: 15 Feet (5 meters)
Low-Light Sensitivity: 0 lux with IR
Image Adjustments: Flip, Brightness, Contrast, Saturation, Sharpness, Exposure
Recording Compression: H.264
Motion Detection: No (detection through Alarm.com Video Analytics only)
Two-Way Audio: Yes
ADC Video Analytics: Yes
Clip Viewing: ADC app & website
WIFI Connectivity: Yes (2x2 MIMO Antennas)
WIFI Specs: 802.11 b/g/n/ac, 2.4 GHz or 5 GHz
Power Requirements: 16-24VAC, 10-40VA OR 15-24VDC, 6-20W
Chime Compatibility: Mechanical & Digital Chimes (Digital chime requires ADC-VDBA-PM-750 power module)
Ingress Protection: IP65
Included Accessories: Wallplate (with pre-assembled set screw and wire terminal screws), 22 Ohm 5 Watt flameproof resistor with 5% tolerance for installations with mechanical chimes (if needed), and wall anchors (x2) & screws (x2)
Dimensions: 4.81"L x 1.5"W x 1.18"D (122 x 38 x 30 mm)
Operating Temperature: -58°F to 122°F (-50° to 50°C)
Operating Humidity: < 95%, Noncondensing Relative Humidity
